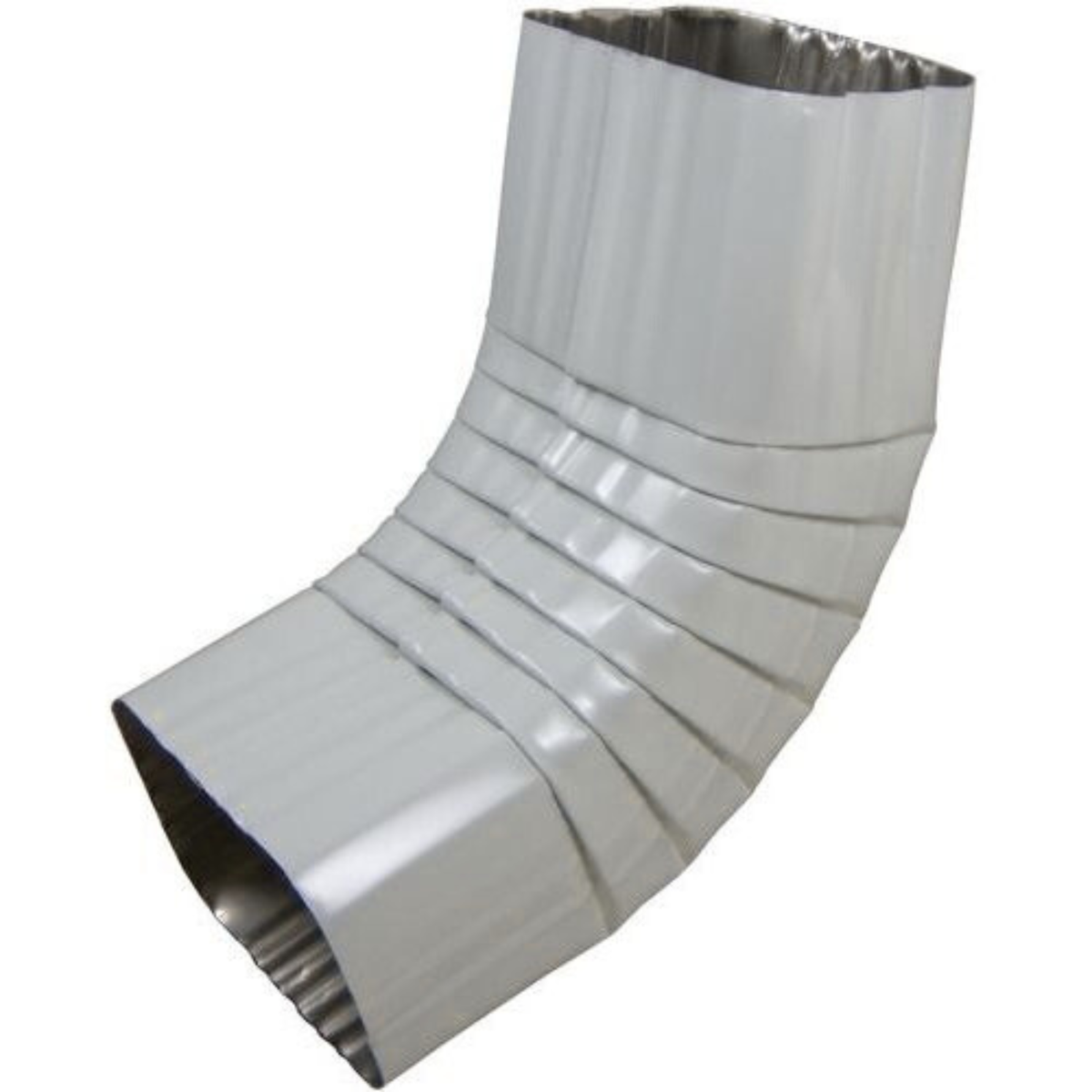

What Are Gutter Elbows and Why Do They Matter?
Gutter elbows seem like simple components. They're small, relatively cheap, and often overlooked. But they're critical to gutter system performance. A poorly installed elbow or wrong-size elbow can cause leaks, restrict water flow, and eventually compromise your entire gutter system.
This guide covers what gutter elbows are, why they matter, and how to specify them correctly.
What Is a Gutter Elbow?
A gutter elbow (also called an elbow, bend, or corner) is a fitting that changes the direction of the gutter run. It's used at building corners and transitions to redirect water flow.
Example Use Cases:
At building corners: The gutter line changes direction 90 degrees. An elbow connects the two perpendicular runs.
At downspout transitions: The horizontal gutter run transitions to a vertical downspout. Elbows create that 90-degree angle.
At offset transitions: Downspouts are sometimes offset from the gutter line to avoid windows or doors. Elbows create those offsets.
Gutter Elbow Types
90-Degree Elbows (Most Common)
90-degree elbows are the standard. They create a 90-degree angle for corner transitions and downspout connections.
90-degree elbows are what most contractors use 90% of the time.
45-Degree Elbows
45-degree elbows are used when you need a gentler angle transition. They're common in offset situations where a 90-degree angle would restrict water flow too much.
Adjustable Elbows
Some specialty elbows allow angle adjustment between 0-180 degrees. These are useful for custom installations where standard angles don't work.
Long vs Short Elbows
Elbows come in long and short versions. Long elbows have more offset distance, useful when more separation is needed. Short elbows are standard for most installations.
Material and Finish Matching
Your gutter elbows must match your gutter material and finish.
Aluminum Elbows
Aluminum elbows should match your aluminum gutter alloy, gauge, and finish.
If your gutters are 3105 aluminum with brown paint finish, your elbows should be the same.
Copper elbows must be used with copper gutters. Never use aluminum elbows on copper gutters—galvanic corrosion occurs at the joint.
Color Matching
Color matching is critical for appearance. An elbow that's slightly different color than your gutter looks amateur.
Work with a supplier who can confirm exact color matches.
Elbow Sizing: Cause of Most Gutter Problems
Sizing the elbow for proper water flow is critical.
Inside Dimension vs Outside Dimension
Gutter elbows have an inside dimension (the opening where water flows) and an outside dimension (the overall size).
For example, a "5-inch K-style" gutter has a 5-inch inside opening. The elbow must have a matching 5-inch inside opening.
Mismatched Elbows: A Common Mistake
Some contractors use elbows with smaller inside dimensions to save cost. A 4.5-inch elbow on a 5-inch gutter restricts water flow and causes backup.
Always match the elbow inside dimension to the gutter inside dimension.
Downspout Elbow Sizing
Downspout elbows connect the horizontal gutter to the vertical downspout. The elbow inside dimensions must match both the gutter and downspout.
Example: A 5-inch K-gutter flows into a 2x3 downspout. The elbow must have a 5-inch opening on the gutter side and a 2x3 opening on the downspout side.
These "transition elbows" are common and essential.
Installing Gutter Elbows: Best Practices
Sealing
Elbows must be sealed at the joint to prevent leaks. Use gutter-compatible sealant on both inside and outside joints.
A leaking elbow will eventually cause water damage. Don't skip the sealant.
Fastening
Elbows should be fastened with stainless steel or material-matched fasteners. Fasteners every 6-8 inches around the elbow ensure it stays secure.
Support
Elbows at gutter corners and transitions receive stress from water weight and gravity. Ensure they're properly supported and fastened. A loose elbow will eventually separate.
Slope and Alignment
At downspout transitions, elbows should direct water smoothly from horizontal gutter to vertical downspout. Avoid sharp angles or backward slopes that trap water.
Calculating Elbow Quantities
Calculate your elbow needs based on building configuration:
Roof corners = 90-degree inside corner elbows
Downspout transitions = Outside elbows (gutter to downspout)
Downspout offsets = Two 45-degree or 90-degree elbows per offset
Example:
Single-story house with rectangular footprint:
- 4 corners = 4 corner elbows
- 3 downspout transitions = 3 downspout elbows
- Total: 7 elbows
For a 20-unit apartment building with complex roof lines:
- Multiple corners and offsets
- Calculate 1-2 elbows per downspout
- Plus corner elbows for each roof section
Common Elbow Installation Problems and Fixes
Leaking Elbows
Cause: Poor sealing or improper fastening
Fix: Drain system, dry completely, re-seal with proper sealant
Water Backup at Elbows
Cause: Undersized elbow restricting flow
Fix: Replace with correct-size elbow or add additional capacity
Elbow Separation
Cause: Inadequate fastening or movement during installation
Fix: Drain, realign, re-fasten with additional fasteners
Corrosion at Elbows
Cause: Material mismatch (steel on aluminum) or dissimilar metals
Fix: Replace with correct material, use dielectric separators if mixing materials
When to Use Gutter Accessories vs Custom Work
Standard Elbows (Cost-Effective)
Use standard 90-degree and 45-degree elbows for most work. They're off-the-shelf, affordable, and install easily.
Custom Elbows
For unusual angles or custom profiles, custom-manufactured elbows are available. They're more expensive but solve non-standard situations.
Made-on-Site Alternatives
Some contractors fabricate custom elbows on-site using brake and forming equipment. This requires skill and adds labor cost but provides maximum customization.
Sourcing Quality Elbows
Your elbows should come from the same supplier as your gutter material. This ensures exact matching of material, alloy, finish, and color.
