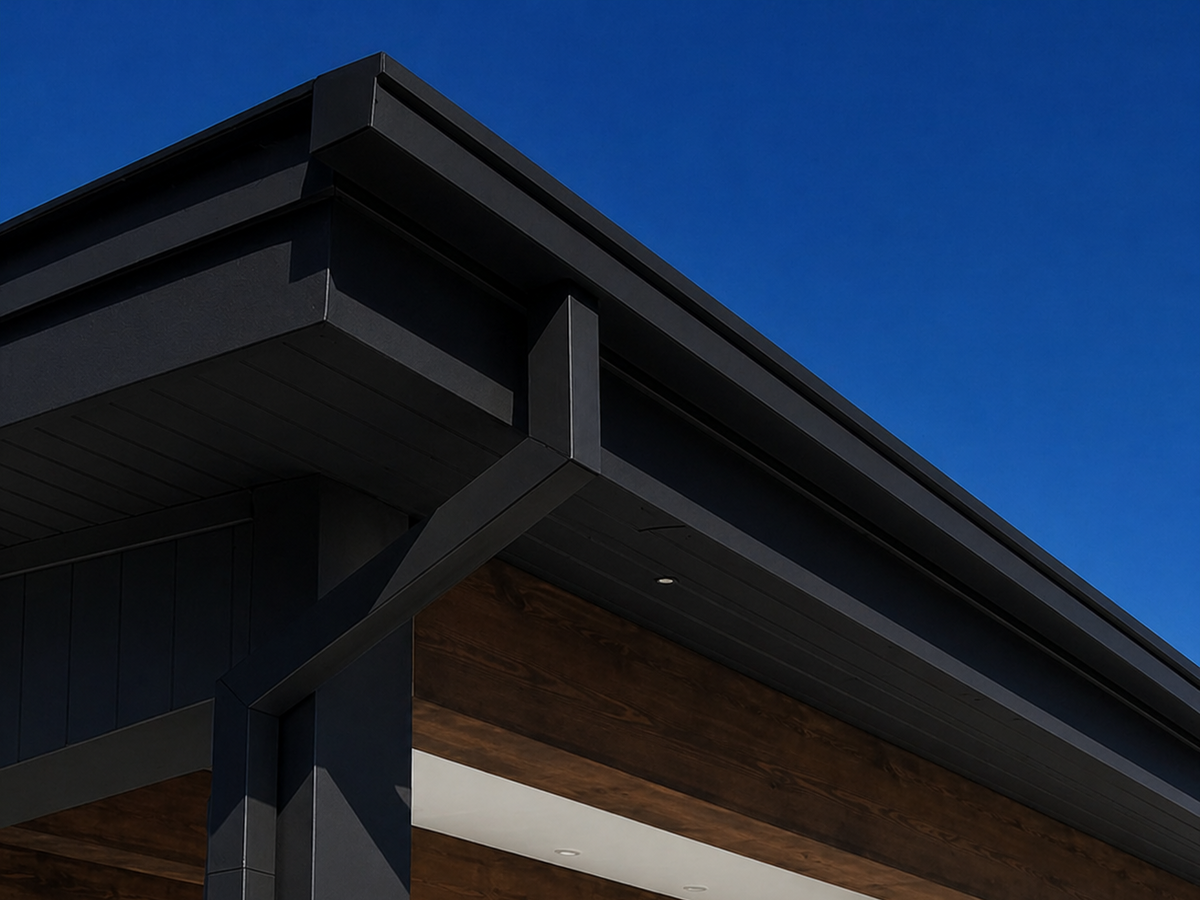

Box Gutters: What They Are and When to Use Them
Box gutters are different animals than K-style or half-round gutters. They're built directly into the building envelope, often integrated with the roof structure itself. They're common on commercial buildings, but rare in residential work.
Box gutters are complex to spec, install, and maintain. But on the right project, they're the right solution. This guide covers what you need to know about box gutters.
What Is a Box Gutter?
A box gutter is a rectangular gutter formed by the building structure itself, rather than a standalone gutter attached to the fascia.
How Box Gutters Work
The roof deck slopes to the interior edge of the building. Water collects in a trough formed by the roof structure and the building envelope. Downspouts are hidden within the building walls.
From the outside, box gutters are invisible. Water goes directly from the roof into the gutter, which is hidden behind the parapet or roof line.
Visible vs Hidden Downspouts
Box gutter downspouts can be:
- Internal (hidden inside the building walls)
- External (visible downspouts on the building face, but integrated with box gutter)
Internal downspouts are more elegant but more complex to install.
Box Gutter vs Traditional Gutters
Traditional Gutters (K-Style, Half-Round)
Attached to the fascia
Water falls from roof edge to gutter
Downspouts are typically visible
Easy to access for cleaning
Box Gutters
Integrated with roof structure
Water slopes into gutter within building envelope
Downspouts are hidden
Harder to access for cleaning
When to Specify Box Gutters
Flat-Roof Commercial Buildings
Box gutters are standard on flat-roof commercial buildings. The roof slopes toward the gutter perimeter, water collects, and downspouts drain it.
This is almost always the spec for commercial office buildings, retail buildings, and industrial facilities with flat roofs.
Parapet Wall Buildings
Buildings with parapet walls (walls extending above the roof line) often use box gutters because gutters would be hidden by the parapet anyway.
Architectural Designs Where Gutters Must Be Invisible
Some building designs require gutters to be completely invisible from the exterior. Box gutters are the solution.
Buildings with Steep Roof Pitches and Large Eaves
Some modern residential designs use box gutters under deep eaves where traditional gutters wouldn't work aesthetically.
When NOT to Specify Box Gutters
Standard Residential
Box gutters are expensive and complex for residential work. Stick with K-style.
Budget Projects
Box gutters cost significantly more than traditional gutters. Budget projects use standard gutters.
Pitched-Roof Residential
Traditional gutters work better on pitched-roof residential. Box gutters complicate the design.
Box Gutter Specifications
Gutter Dimensions
Box gutters are typically 4x4 inches to 8x8 inches internal dimensions, depending on roof area and rainfall.
Calculate based on roof area and climate. Heavier rainfall requires larger gutters.
Material Selection
Aluminum Box Gutters
Aluminum is standard for commercial box gutters. Specify 24 oz or 26 oz aluminum for durability.
Copper Box Gutters
Copper is less common but used in premium or historic buildings.
Built-Up Roofing Integration
Box gutters are often built up with the roof structure itself. The gutter may be formed from sheet metal integrated with the roof membrane.
This requires coordination between roofers and sheet metal contractors.
Fastening and Support
Box gutters need internal support structure (typically metal or wood framing) to support the weight of water and support the gutter shape.
Undersized support leads to sagging or structural failure.
Installation Complexity
Box gutter installation is more complex than traditional gutter installation.
Structural Requirements
Box gutters require structural engineering. You need to know:
- Maximum water load weight
- Support spacing and size
- Deflection limits
- Connection points
Most box gutter projects include structural drawings and engineering.
Downspout Integration
Internal downspouts require careful routing through the building structure. Downspout placement affects building layout.
Downspout penetrations through walls, floors, or roofs need careful sealing and flashing.
Sealing and Waterproofing
Box gutters are part of the roof waterproofing system. Any leak compromises the entire roof.
Sealing requires expertise and attention to detail.
Maintenance and Access
Box gutter maintenance is harder than traditional gutter maintenance.
Cleaning
Cleaning box gutters requires safe access. Some box gutters are accessible from the roof edge. Others are difficult to access.
Plan maintenance accessibility when designing the gutter system.
Leak Detection
Box gutter leaks are harder to diagnose than traditional gutter leaks because the gutter is hidden. Water leaks may appear in unexpected locations.
Repair Complexity
Repairing a box gutter requires removing or opening the roof structure. This is expensive and complicated.
Specify high-quality materials and proper installation to avoid future repair costs.
Cost Comparison
Traditional Gutter Installation
- Aluminum K-style: $4-8 per linear foot installed
- Half-round: $8-15 per linear foot installed
Box Gutter Installation
- Aluminum box gutter: $20-40+ per linear foot installed
- Includes structural work, engineering, and integration with roof
Box gutters cost 5-10x more than traditional gutters because they require structural integration and careful engineering.
Design Considerations
Slope and Pitch
Box gutters must slope toward downspouts. Typically 1/4 inch per 12 inches of length minimum.
Improper slope causes water pooling and potential leaks.
Downspout Sizing
Box gutters typically handle larger roof areas than traditional gutters, so downspout sizing is critical.
Calculate downspout capacity based on roof area and rainfall intensity.
Overflow Protection
Box gutters should have emergency overflow provisions (scuppers or overflow gutters) in case the primary downspout clogs.
Without overflow protection, water backs up and leaks into the building.
Working with Architects and Engineers
Box gutter projects almost always involve architects or engineers. Your role is implementation.
Understand the specs provided. Ask questions about details that seem unclear. Box gutters leave no room for field improvisation.
When to Call in Specialists
Box gutter installation is specialized work. If you don't regularly install box gutters, consider:
- Subcontracting to a sheet metal specialist
- Partnering with a roofing company that handles box gutters
- Training your crew with manufacturer support
Box gutter failures are expensive and damage your reputation.
Ready to Take on Box Gutter Work?
Box gutters are more complex than traditional gutters, but they're the standard for commercial flat-roof buildings.
Get a quote for box gutter material and let's discuss your project specifications, structural requirements, and downspout integration. We supply custom gutter manufacturing for box gutter systems nationwide.
